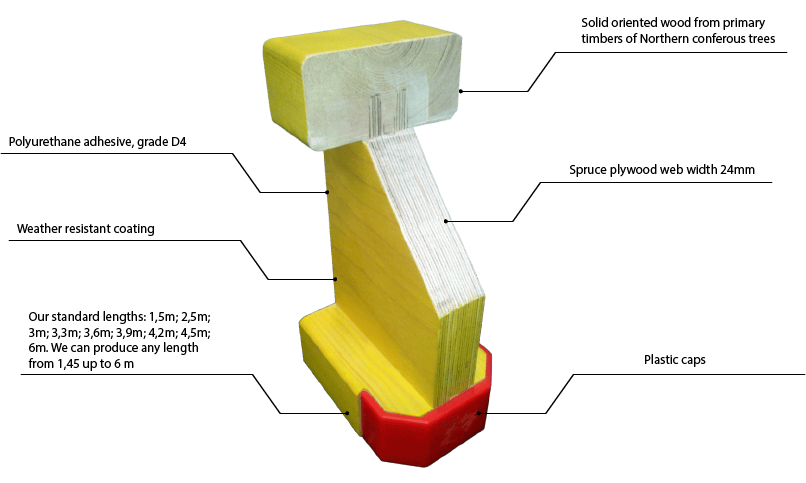

Tavr beams are designated for application as a bearing element of wall shuttering.
Our beams are supplied with plastic caps that helps to protect them from damages and prolong it`s service life.
Wooden flanges are made of oriented wood.
Plywood wall made of high-quality Northern coniferous trees is 24 mm wide with the length of up to 3 meters which is produced of undisturbed strip. During production for length of over 3 meters beam wall is interlocked with a quality longitudinal pin (3 cm).
The web and flanges are fixated by glued mini-dovetail jointing.
High load-bearing capacity of the beams allows large spans that helps to reduce the quantity of beams used.
Warranty period is 40 cycles.
We use only modern European manufacturing equipment and pay much attention to the quality control.
«TAVR» H20
| Identification name of beam | TAVR | ||
| Certificate of Conformity | № РОСС RU.04РИД0.ОСП01.С00438 | ||
| Main technical features | Indices | Norm | Fact |
| Coefficient of elasticity (MPa) | 6000 | 8040 | |
| Destroying force (kN) | 10 | 16,48 | |
| Destroying the bending moment (kNm) | No less 9,5 | 12,62 | |
| Web | White solid waterproof plywood with 24 mm thickness. Raw materials supplier: SVEZA, UPM Name of raw material: SVEZA Exterior Plywood |
||
| Flange | Solid 100% oriented wood. Raw materials supplier: Stora Enso Oyj Melnhof Group |
||
| Technical regulations | TU 5366-002-99187742-2015 | ||
